Hall Effect Sensor

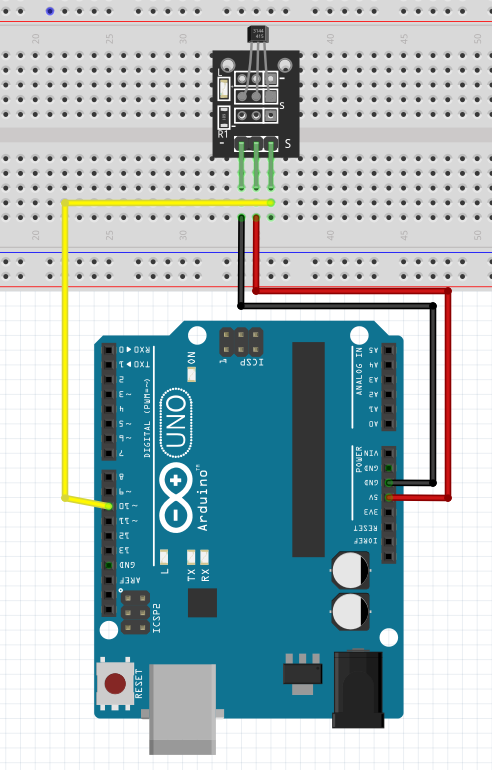

The connection diagram for hall effect sensor is shown below:

Hall effect sensor connection

LED

Arduino Uno

Signal

D10

VCC

5V

GND

GND

Depending on the model of the hall effect sensor, you might need to add capacitors and resistors to make it make. In this sketch, the model used is KY-003.

Reading Sensor State

import raspidevkit
import time

machine = raspidevkit.Machine()
arduino = machine.attach_arduino('/dev/ttyUSB0')
hall_effect_sensor = arduino.hall_effect_sensor(10)
value = hall_effect_sensor.read()
print(value)
