LED

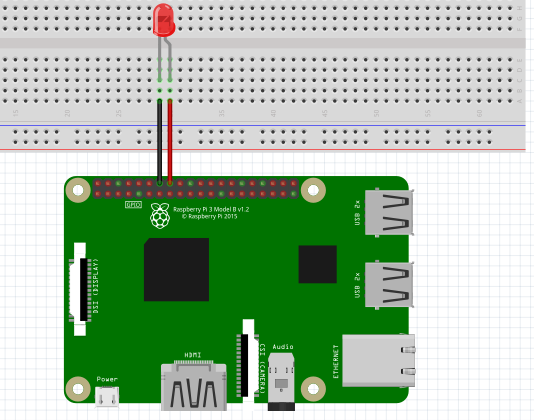

The connection diagram for LED is shown below:

LED connection

LED

Raspberry Pi

VCC

GPIO23

GND

GND

By default, the pin is set to pull down so you won’t need a resistor for this

Blinking LED

import raspidevkit
import time

machine = raspidevkit.Machine()
led = machine.attach_led(23)
led.turn_on()
time.sleep(3)
led.turn_off()
