DHT Sensor

DHT11 and DHT22 are both kinds of DHT Sensor, both behave the same, the difference is just that both have different specs such as operating conditions

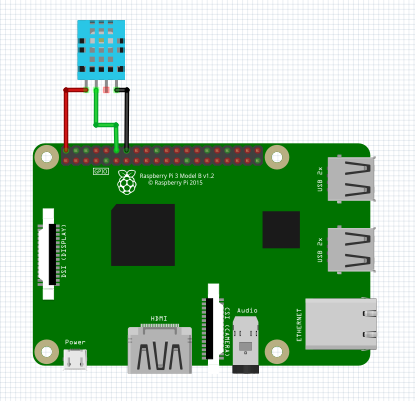

The connection diagram for DHT sensor is shown below:

DHT Sensor	Raspberry Pi
VCC	5V
GND	GND
Data	GPIO18

Reading Temperature

import raspidevkit

machine = raspidevkit.Machine()
dht11 = machine.attach_dht11(18)
temperature = dht11.get_temperature()
print(temperature)

Reading Humidity

import raspidevkit

machine = raspidevkit.Machine()
dht11 = machine.attach_dht11(18)
humidity = dht11.get_humidity()
print(humidity)

Get All Parameters

It is inefficient to call each get parameter per read. If you want to get both parameter in both reading use get_data()

import raspidevkit

machine = raspidevkit.Machine()
dht11 = machine.attach_dht11(18)
temperature, humidity = dht11.get_data()
print(temperature)
print(humidity)
