Hall Effect Sensor

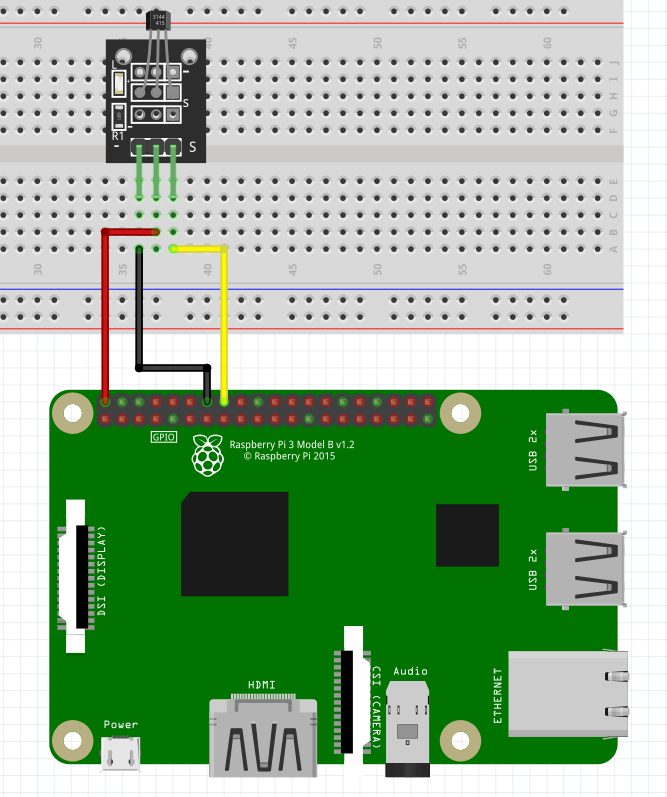

The connection diagram for hall effect is shown below:

Hall effect sensor connection

Sensor

Raspberry Pi

Signal

GPIO23

VCC

5V

GND

GND

Depending on the model of the hall effect sensor, you might need to add capacitors and resistors to make it make. In this sketch, the model used is KY-003.

Reading Sensor State

import raspidevkit

machine = raspidevkit.Machine()
attach_hall_effect_sensor = machine.attach_hall_effect_sensor(23)
value = attach_hall_effect_sensor.read()
print(value)
